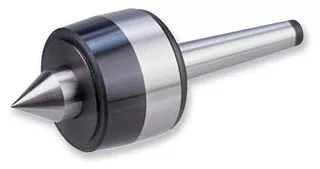

Bison Precision Live Center, MT5
- Machined from one piece of forging, hardened and precisely ground
- Lubricated with a special grease and do not require any additional lubrication
- Three precision high-quality bearings are protected by a special steel shield and neoprene seal
Specifications:
| Precision Live Centers | |
| ITEM NUMBER | 67-092-7 |
| MORSE TAPER | MT 5 |
| OUTSIDE DIA. (D) | 3.35″ |
| POINT DIA. (d) | 1.61″ |
| OAL (L) | 9.33″ |
| POINT LENGTH (L1) | 1.77″ |
| PROJECTION LENGTH (L2) | 4.23″ |
| MAX. RPM | 2500 |
| LOAD CAPACITY | 4400 lbs. |
| ACCURACY | 0.0004″ |
